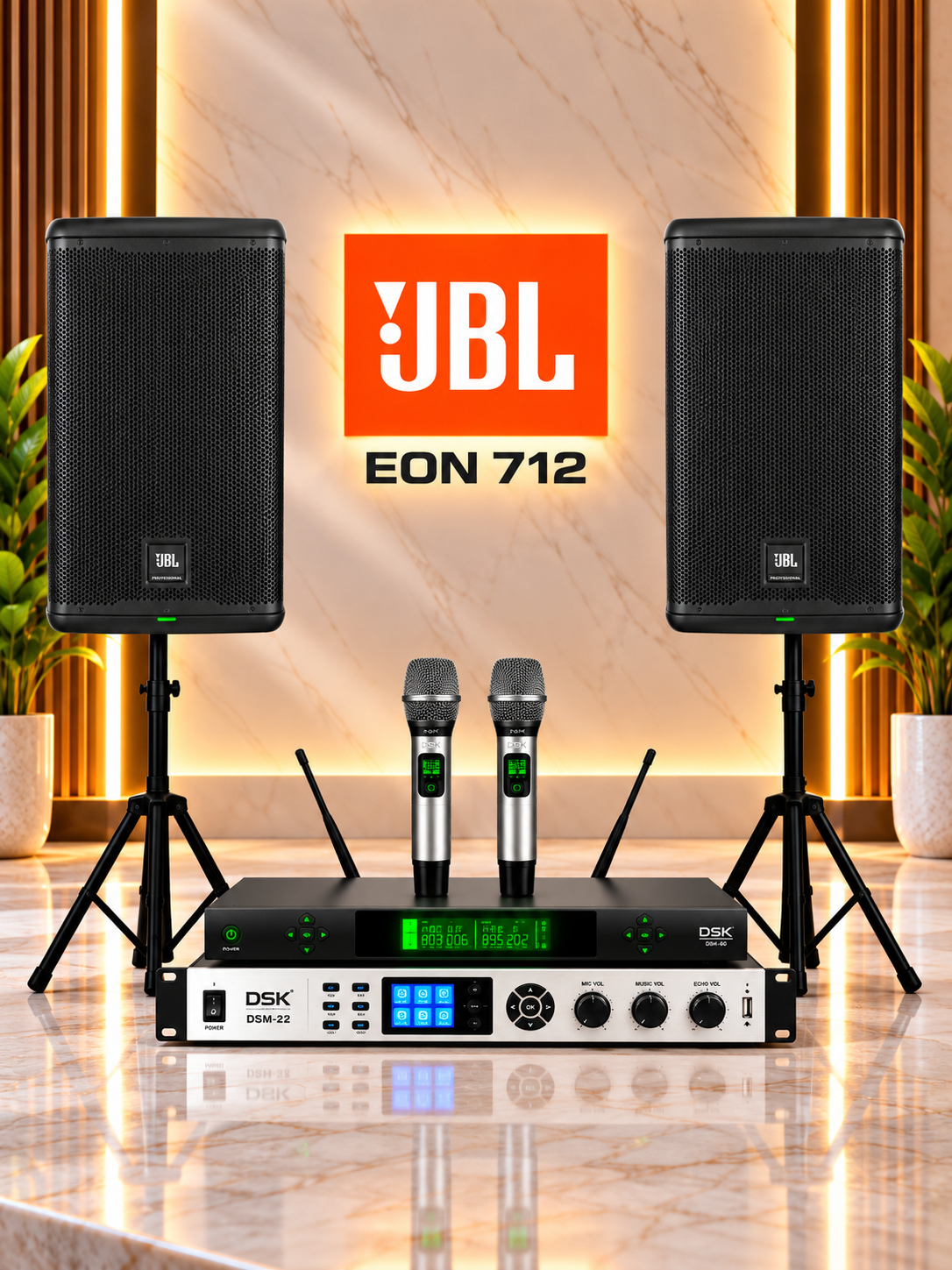

The JBL EON712 12-Inch Powered PA Speaker with Bluetooth
The JBL EON712 12-inch loudspeaker is part of JBL’s new EON700 Series of powered PAs, which represents a major step forward in innovation and technology: JBL engineers used exclusive, state-of-the-art design and measurement techniques to deliver the best-performing loudspeakers in their category, regardless of application. The EON700 Series leverages the latest acoustic science, transducer designs, cabinet materials and advanced DSP and control technologies to deliver extraordinary performance in a fully professional, highly flexible, easy to use, portable system.
- Optimized woofers, redesigned horns and 2414H compression drivers
- Built-in 3-channel digital mixer (full-range speakers)
- Backlit color LCD screen provides easy access to functions
- dbx DriveRack Inside technology with Automatic Feedback Suppression, 8-band output EQ, speaker delay
- Universal JBL Pro Connect app control
- Bluetooth 5.0 audio streaming (full-range speakers)
- Durable talc-reinforced polypropylene cabinets and metal grilles for increased rigidity, lower weight and enhanced protection
- Ergonomic handles simplify transport
- Built-in pole mounts and an optional EON700 Universal Yoke Mount expand system configuration options
- Stackable cabinets allow easy storage
SPECIFICATIONS
- Power: 1,300 W peak (650 W cont)
- Frequency Response: 50 Hz – 20 kHz (-10 dB); 60 Hz – 20 kHz (-3 dB)
- Max SPL: 127 dB
- Dispersion: 100° H x 60° V
- Audio I/Os: 2 XLR Combo, 1 XLR passthrough
- Dimensions (H x W x D): 26.3 x 15 x 12.75 inch / 669 x 382 x 324 mm
- Weight: 32 lb / 14.5 kg
- Shipping Dimensions (H x W x D): 27.8 x 19.64 x 17.28 inch / 706 x 499 x 439 mm
- Shipping Weight: 40.1 lb / 18.2 kg
The DSK DSM 22 takes digital audio processing to a higher level. Designed as the control center of a premium karaoke system, it gives you the precision to optimize not only vocals and music, but virtually every part of the sound system individually.
At its core is a high-speed 64-bit ADI DSP, delivering detailed processing with 15-band PEQ + HPF for Music and Microphone, dedicated 5-band Echo and 5-band Reverb EQ, and professional control across 6 independent outputs — Main L/R, Center, Surround L/R, and Subwoofer.
What truly separates the DSK DSM-22 is its ability to fine-tune each output with an independent 10-band PEQ, Delay, and Limiter. This gives installers and experienced users significantly greater control over speaker balance, timing, room response, and system protection — especially in more advanced multi-speaker setups.
Its 7-level Frequency Shift anti-howling system provides more precise feedback control, while Bluetooth 5.0 Lossless, Optical, Coaxial, and RCA inputs deliver flexible high-quality connectivity. Nine user presets allow different system configurations to be stored and recalled when needed.
The result is more than louder or more processed sound. Properly tuned, the DP26-PRO delivers cleaner music, clearer and more natural vocals, tighter system balance, stronger feedback control, and greater confidence at higher listening levels.
For a straightforward home karaoke upgrade, the DP26-PLUS is an excellent choice. But for customers investing in a premium system, multiple speakers, or a more professional karaoke experience, the DP26-PRO provides the deeper control and refinement that justify stepping up.
DSK DSM-22 — when great equipment deserves professional-level control
